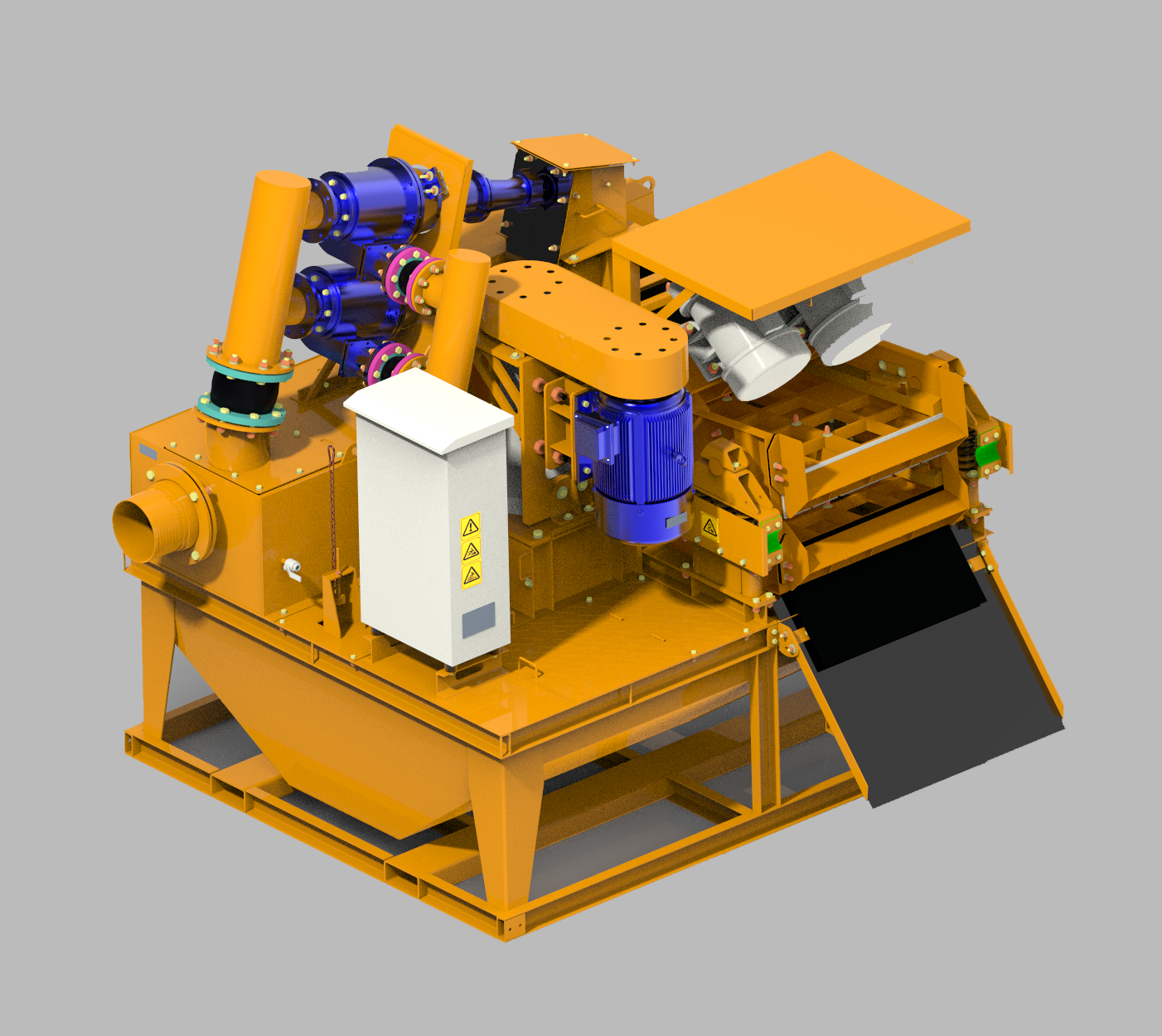

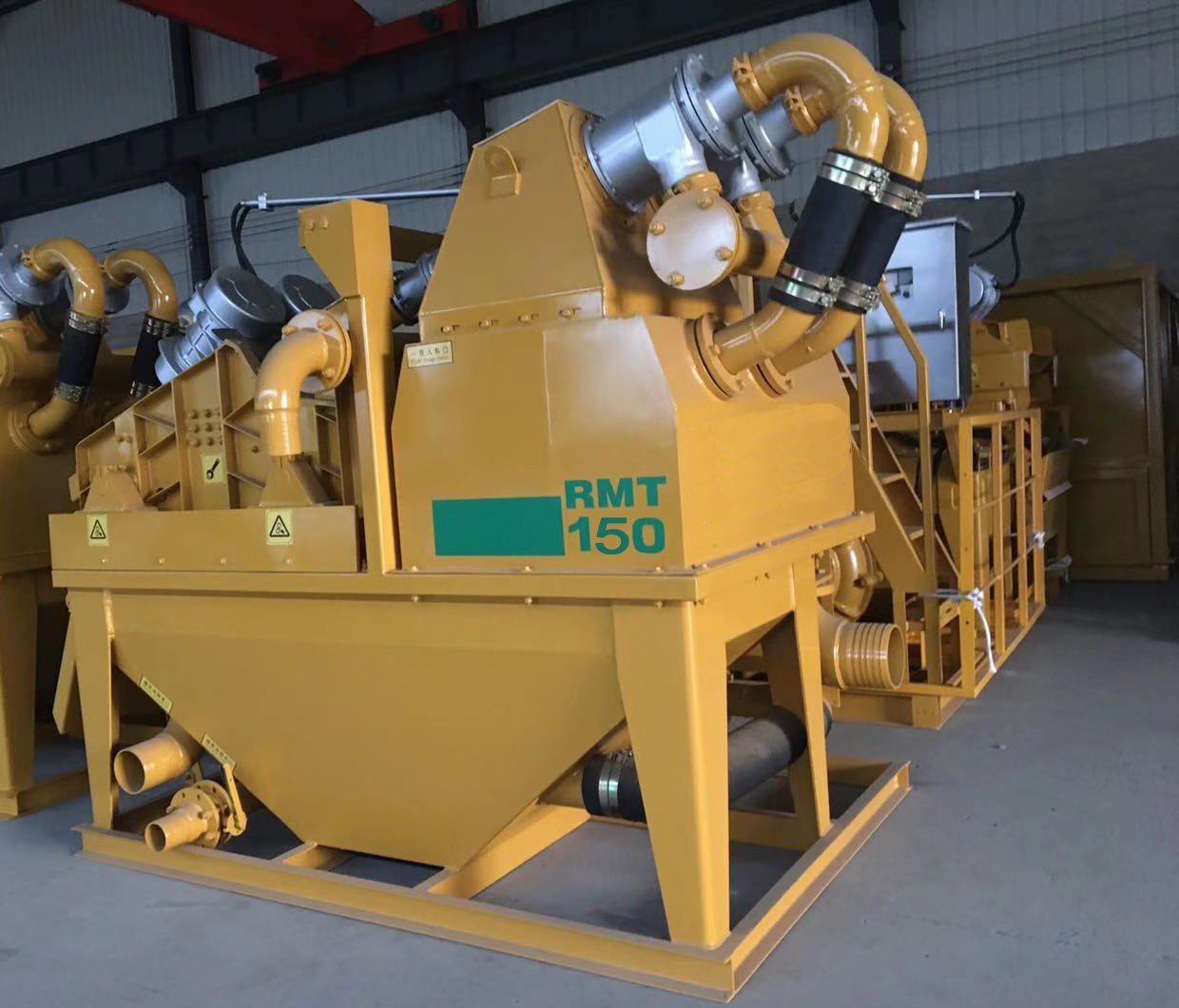

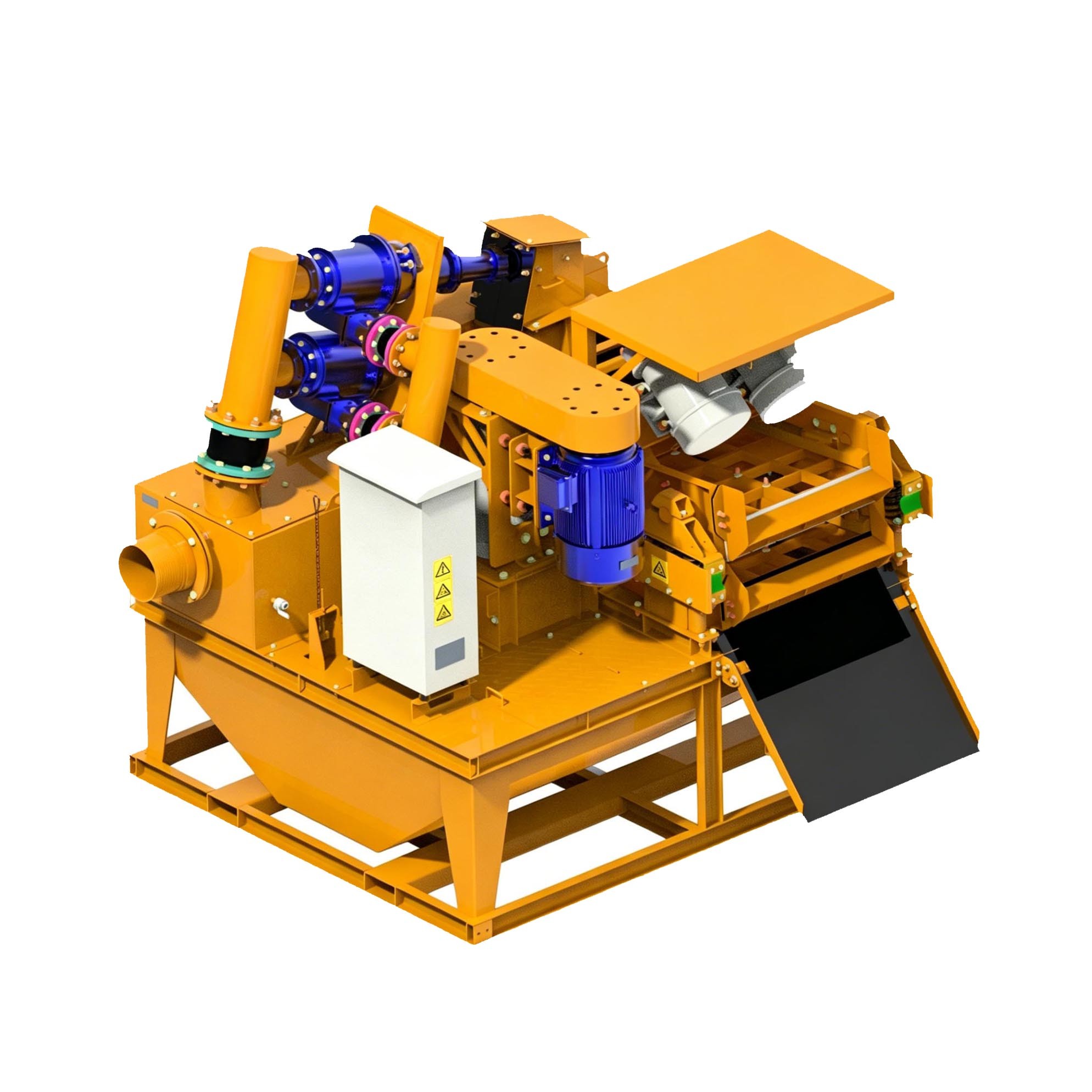

RMT150 Bentonite Desander with Capacity 150m³/h
Specification:
| Model | RMT150 |
| Max. Slurry Capacity | 150 m³/h |
| Cut Point d50 | 0.04 mm |
| Total Power | 25 kW |
| Motor Power ( Main pump ) | 22 kW |
| Motor Power ( Vibration motor ) | 1.5 kW× 2 |

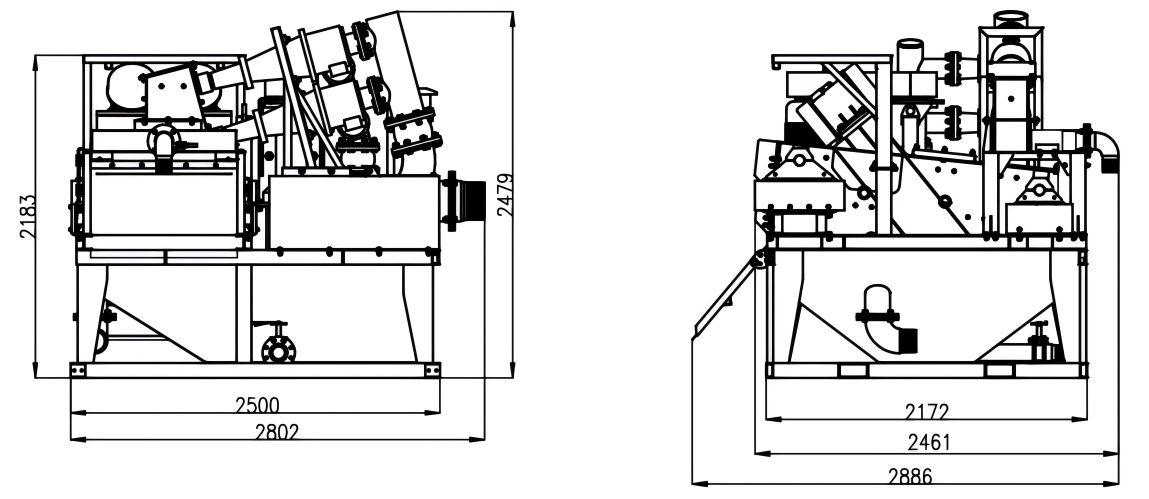

| Transportation Dimension ( L×W×H ） | 2.85×2.3×2.5 m |
| Working Dimension ( L×W×H ） | 2.85×2.8×2.5 m |
| Total Weight | 4285 kG |
Feature:
The RMT150 Slurry Desander is a high-efficiency slurry desander system and mud separation equipment designed for foundation drilling, bored pile construction, rotary drilling rig operations, and trenchless engineering projects. Equipped with a high-chrome alloy slurry pump, it solves the problems of rapid pump wear and unstable slurry transportation, ensuring reliable and continuous performance in drilling mud cleaning and slurry recycling systems. The internal circulation and automatic level control system effectively prevents dry running and unstable flow issues, improving operational safety in hydrocyclone desander and slurry treatment applications. Its modular compact design solves transportation difficulties and reduces on-site space requirements, making it suitable for various construction environments. The high-quality polyurethane screening system ensures efficient solid-liquid separation while preventing blockage during high-sand slurry processing. In addition, the wireless remote control function simplifies operation with one-key start and stop, improving efficiency and safety on construction sites. The stainless steel control cabinet provides strong corrosion resistance and long service life, ensuring stable performance in harsh working conditions. Overall, the RMT150 Mud Desander significantly improves slurry recycling efficiency, reduces bentonite consumption costs, and enhances borehole stability, making it an ideal solution for modern foundation construction slurry cleaning and mud desander systems.
Advantages:
1. Durable Slurry Desander Pump | Internal Circulation & Level Control System:
The Slurry Desander system is equipped with a high-chrome alloy slurry pump, solving the problem of pump wear and unstable slurry transfer in drilling mud operations, ensuring high wear resistance and efficient slurry handling in foundation drilling and bored pile construction. It also includes an intelligent internal circulation and level control system to solve dry running damage and unstable slurry flow issues, ensuring safe and continuous operation in mud desander and hydrocyclone desander systems.
2. Modular Compact Design | High-Quality Screening System:
The RMT Slurry Desander equipment adopts a modular compact structure, solving the problem of difficult transportation and large site occupation in foundation construction projects, making it ideal for bored pile drilling, rotary drilling rigs, and trenchless engineering works. The system uses polyurethane slotted screen plates, which solve the issue of screen blockage and low separation efficiency in high-sand slurry, ensuring stable solid-liquid separation in slurry desander and mud recycling systems.
3. Wireless Remote Control Operation | Stainless Steel Control Cabinet:
The Hydrocyclone Desander system is equipped with wireless remote control, solving the problem of complex manual operation and low construction site efficiency, enabling one-key start/stop for safer and easier operation in slurry cleaning and mud treatment projects. The stainless steel control cabinet solves the issue of corrosion and short equipment lifespan in harsh environments, ensuring long-term stable performance in foundation slurry treatment systems and construction engineering applications.

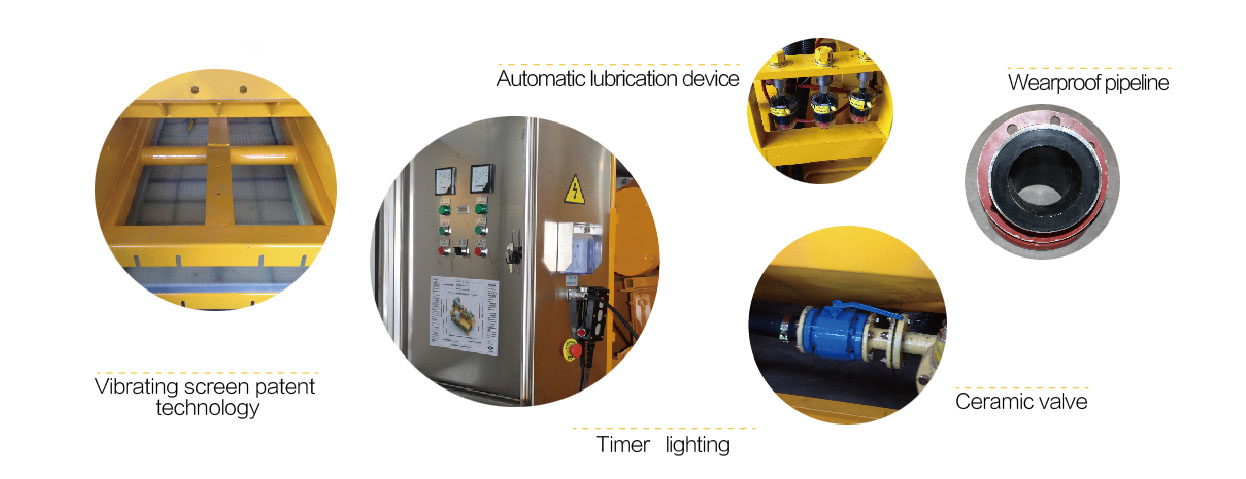

Product Details:

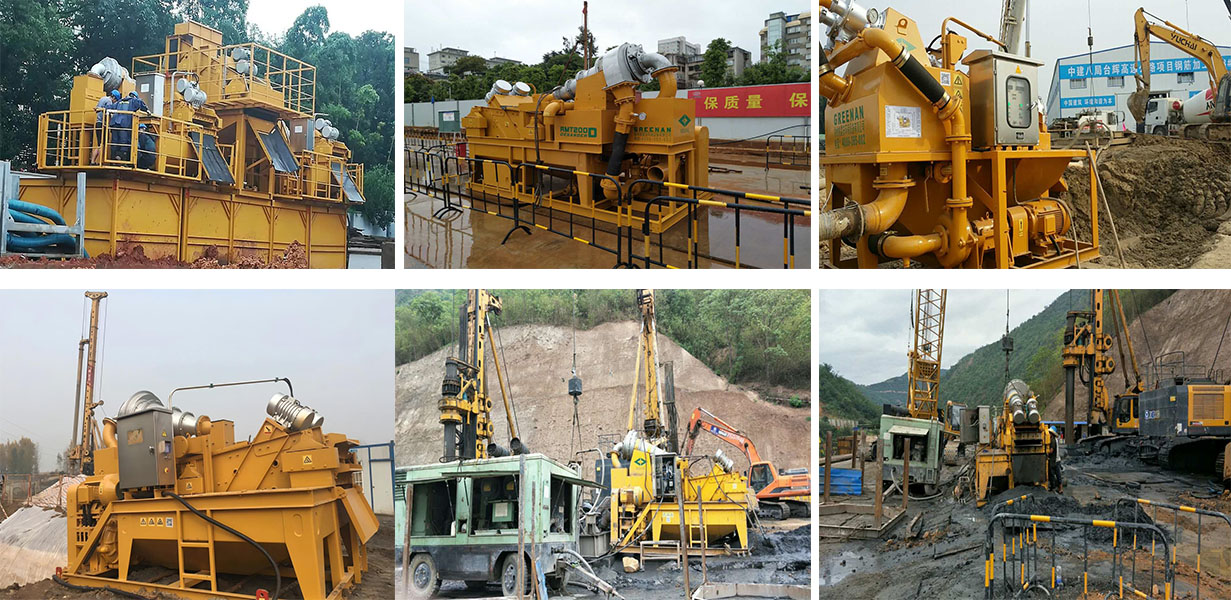

Construction Case:
