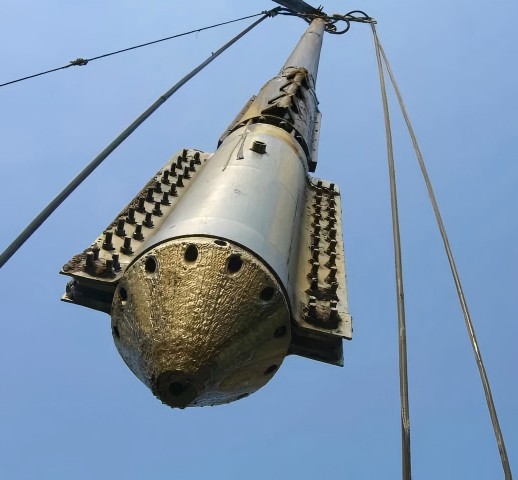

Top Feed Vibroflot

Name: Top Feed Vibroflot
Type: Electrical
Power: 55kW to 300kW
Application: Electrical top feed vibroflots are suitable for various granular soil conditions, including loose sand, silty sand, and gravelly soils. Multiple power ratings are available to meet different project depths and soil requirements.

INQUIRY

Product Details

Product Tags

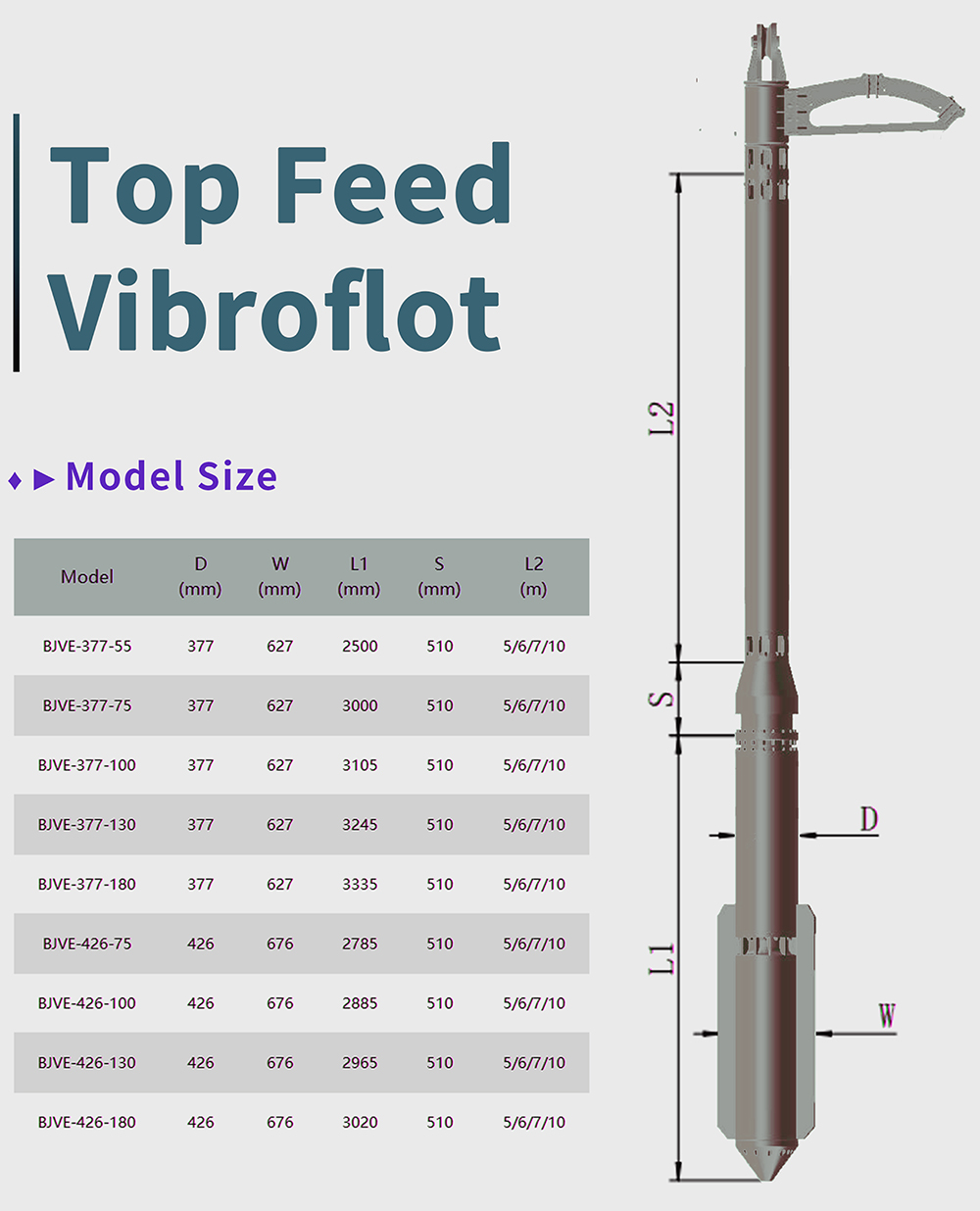

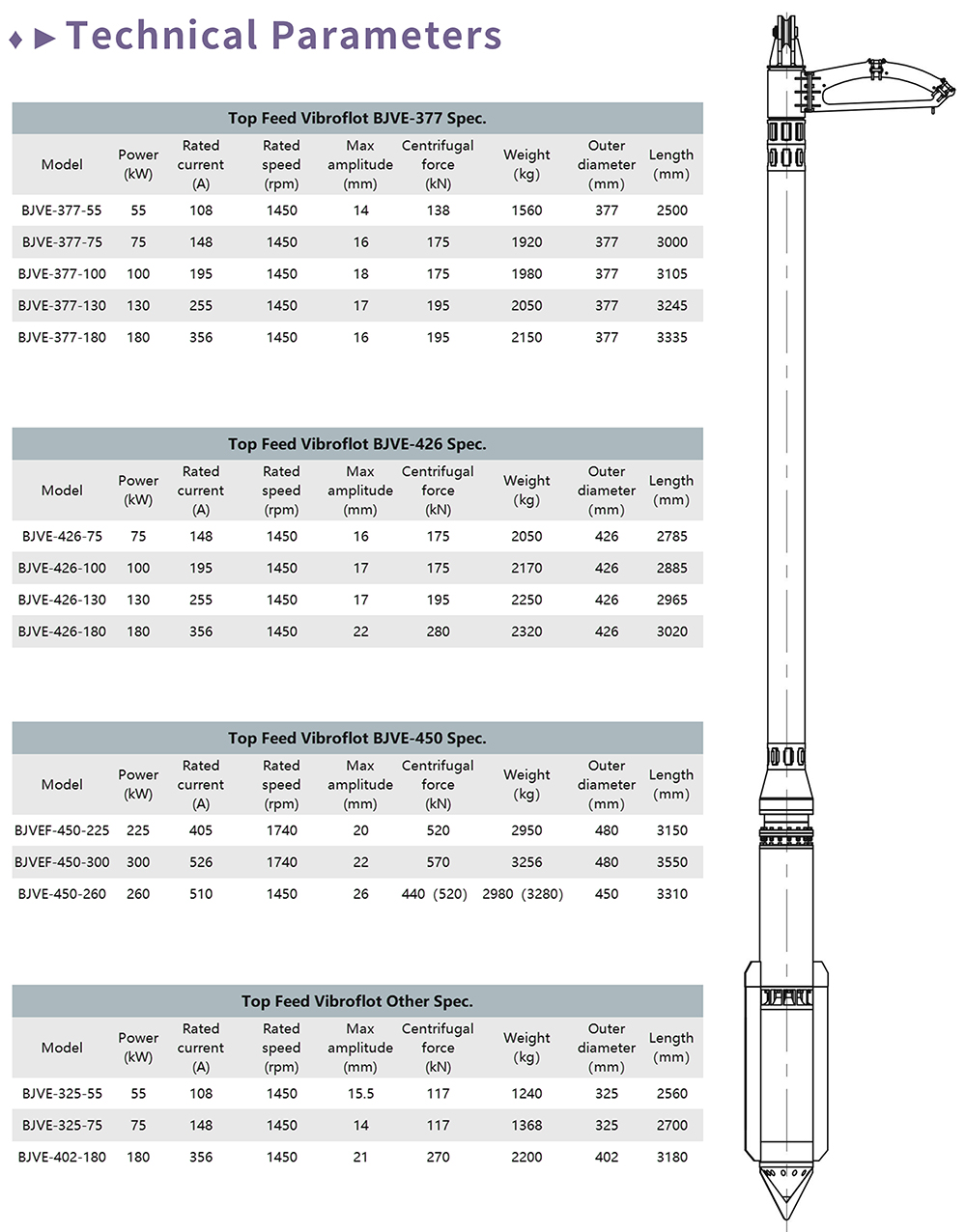

Specification:

Feature:

Stable Electric Drive System:Electrical top feed vibroflot is powered by a high-performance electric motor, providing stable and continuous vibration output. Compared with hydraulic or diesel systems, the electric drive ensures consistent frequency and amplitude during long operating periods.

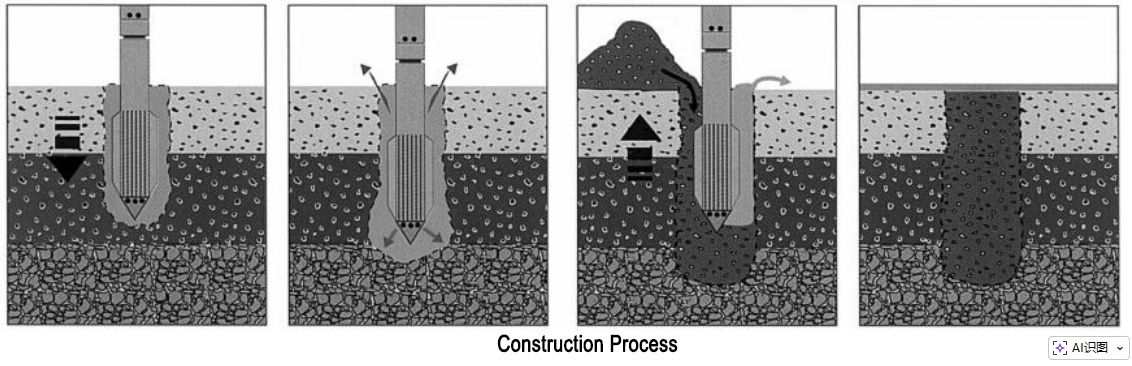

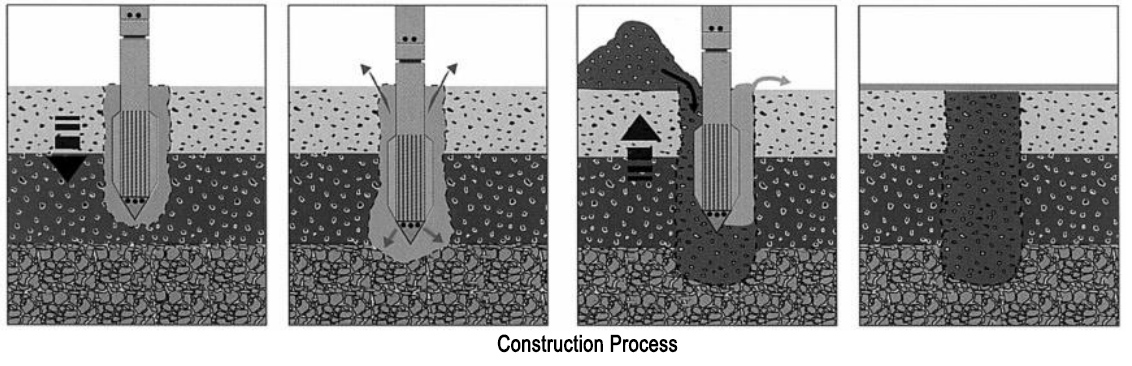

Top Feed Stone Supply Method: The top feed system allows gravel or stone material to be supplied from the ground surface directly into the borehole while vibration is in progress. This enables simultaneous soil densification and material filling, improving construction efficiency.
High Efficiency Ground Densification: Through high-frequency vibration, soil particles are rearranged into a denser structure, significantly reducing void ratio. This results in improved bearing capacity and reduced post-construction settlement, especially in loose sandy and granular soils.
Low Maintenance and High Reliability: The equipment features a compact and robust mechanical design with fewer hydraulic components. This reduces failure points, lowers maintenance costs, and improves overall reliability during long-term operation.
Improved Ground Performance: After treatment, the ground exhibits enhanced load-bearing capacity, improved stiffness, and increased resistance to settlement and liquefaction, ensuring long-term foundation stability.

Advantages:

1. High Efficiency Ground Improvement: High-frequency vibration rearranges soil particles into a denser structure, significantly improving bearing capacity and reducing post-construction settlement, especially in loose sand and granular soils.

2. Fast Construction and High Productivity: The top feed method allows gravel or stone to be supplied from the surface while vibration is ongoing, shortening installation cycles and increasing daily production rates. This makes it ideal for large-area ground improvement projects.

3. Stable and Reliable Electric Drive: The electric motor provides consistent vibration output with stable frequency and amplitude. Compared to hydraulic or diesel systems, it ensures reliable long-term operation with reduced energy losses.

4. Low Operating and Maintenance Costs: With a simplified mechanical structure and fewer hydraulic components, the equipment requires less maintenance, reduces downtime, and lowers overall lifecycle costs.

Product Details:
