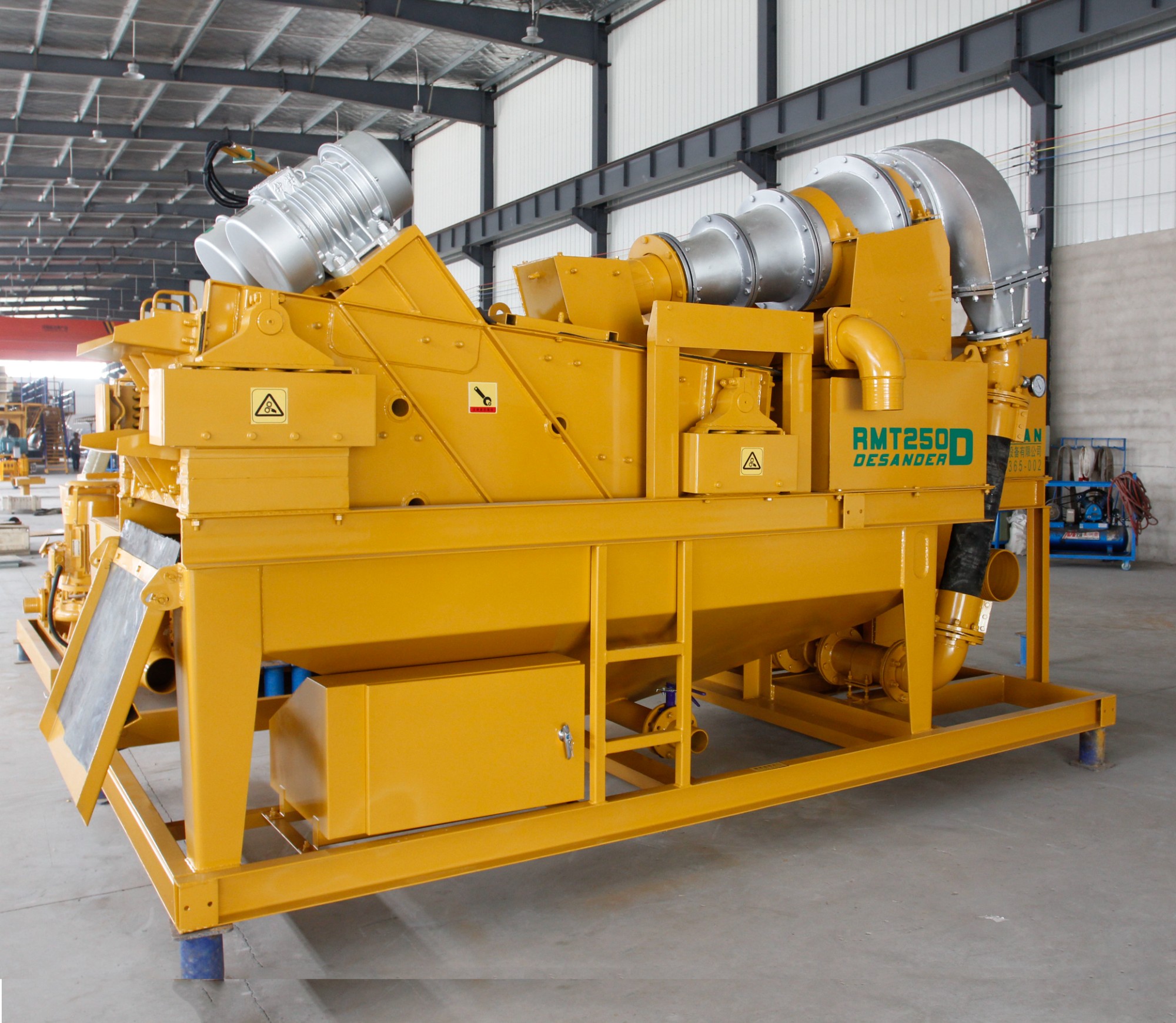

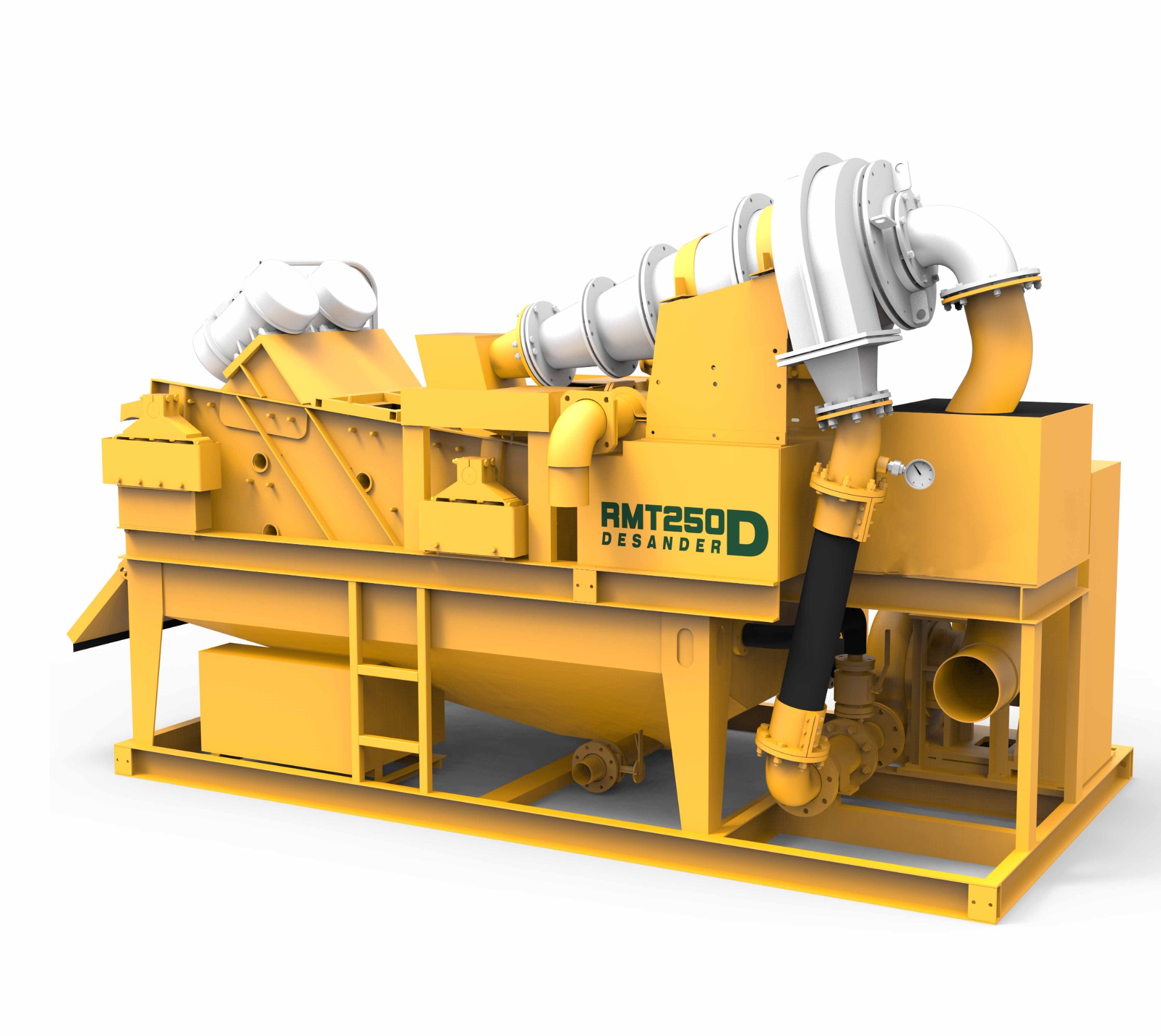

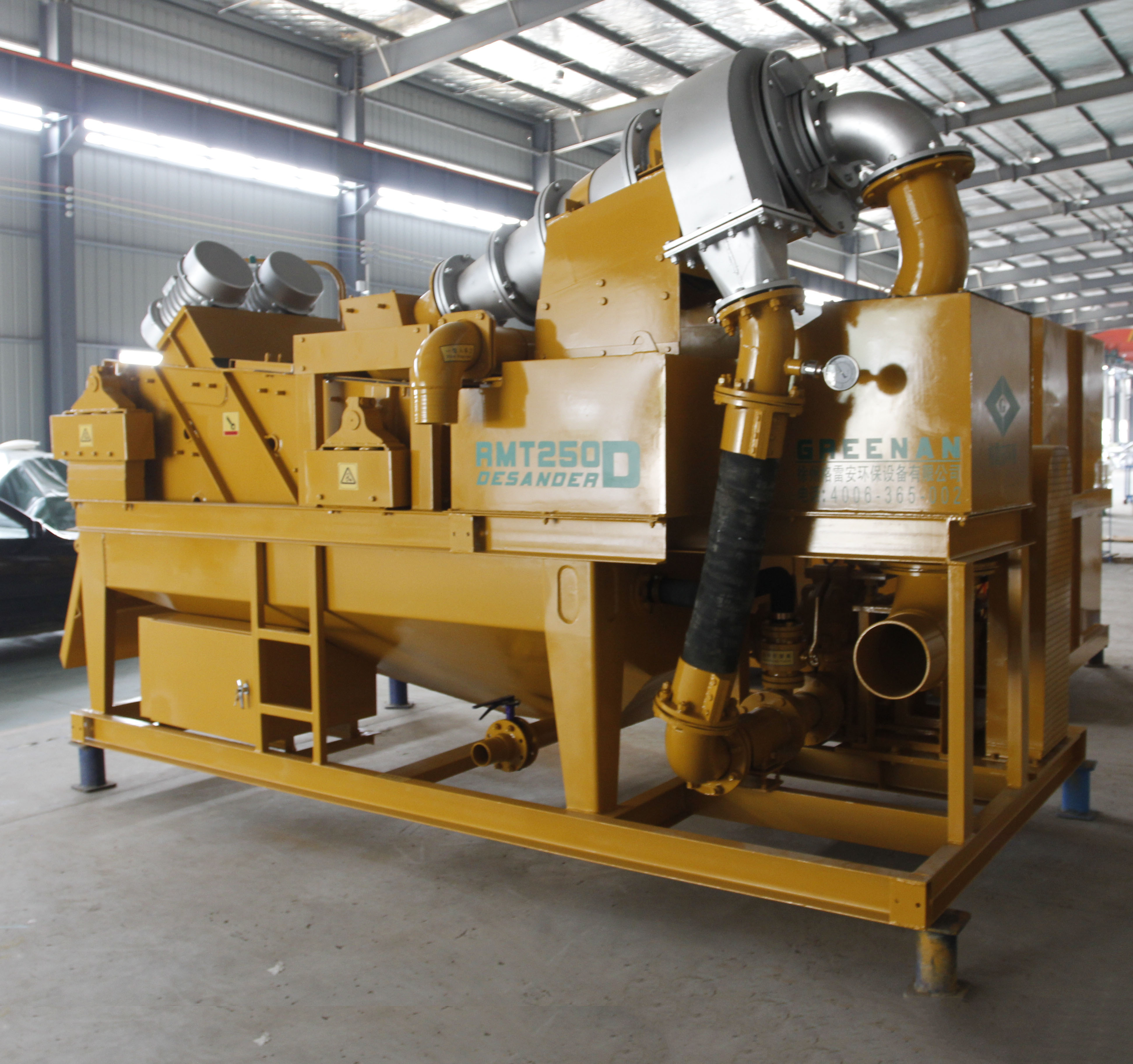

RMT250 Slurry Desander

RMT250 Slurry Desander with Capacity 250m³/h

Name: Slurry Desander
Slurry Capacity: 250m³/h
Application: In the construction of bridge pile foundations and building pile foundations, the wall protection mud is processed. Through solid-liquid separation, the mud quality is controlled, the porosity is improved, and the amount and cost of slurry materials such as bentonite are reduced.

INQUIRY

Product Details

Product Tags

Specification:

Model	RMT250
Max. Slurry Capacity	250 m³/h
Cut Point d₅₀	0.06 mm
Total Power	58 kW
Motor Power ( Main pump )	55 kW
Motor Power ( Vibration motor )	1.5 kW× 2

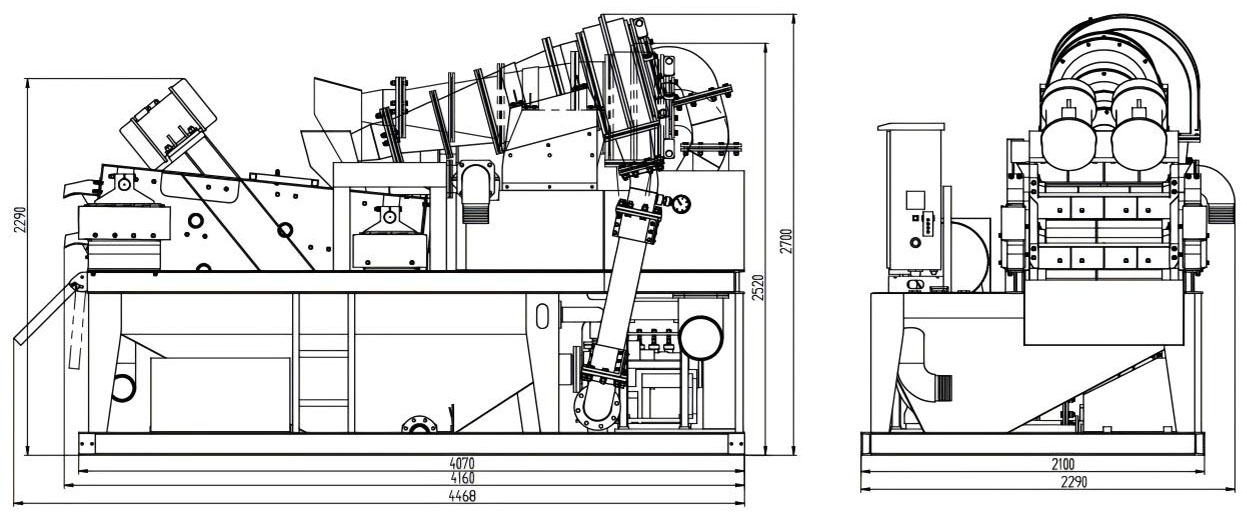

Transportation Dimension ( L×W×H ）	4.16×2.3×2.7 m
Working Dimension ( L×W×H ）	4.5×2.3×2.7 m
Total Weight	5400 kG

Feature:

The RMT slurry desander series is a type of auxiliary piling equipment specifically designed to support trenching foundation construction, drilled foundation work, and trenchless foundation machinery. It effectively controls sand content and particle size in the slurry during construction, enabling efficient solid-liquid separation. Solid particles are removed from the slurry, and dewatered waste residue is discharged. This process improves pile hole formation efficiency, reduces slurry consumption costs, and facilitates slurry recycling.

Advantages:

1. Durable Slurry Desander Pump: Equipped with a high-chrome alloy slurry pump for superior wear resistance and high transport efficiency.

2. Internal Circulation and Level Control System: lt includes an internal circulation and level control system to effectively prevent damage from dry running.

3. Modular Design: The RMT50 Desander equipment is designed with a modular approach, featuring a compact structure that is easy to transport and occupies minimal space.

4. High-Quality Screening: It utilizes polyurethane slotted sieve plates that offer good wear resistance and are not prone to blockage.

5. Wireless Remote Control: The equipment is equipped withawireless remote control function for one-click start and stop,making operation extremely simple and convenient.

6. Stainless Steel Control Cabinet: The electrical control cabinet is made of stainless steel,ensuring an attrac- tive appearance and a long service life.

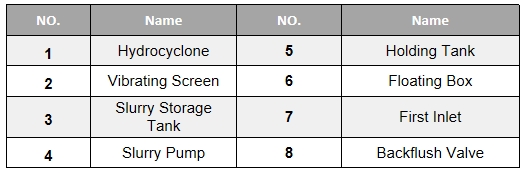

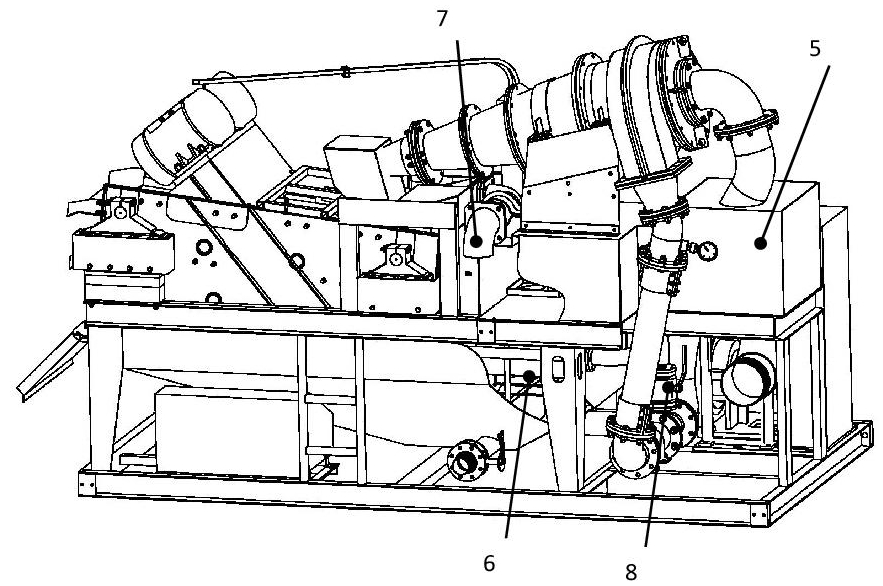

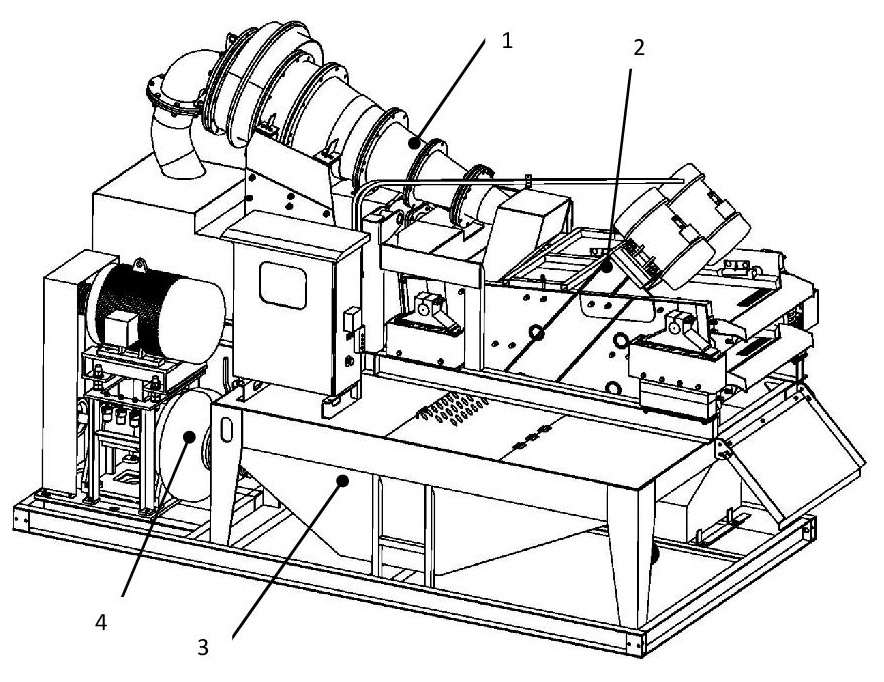

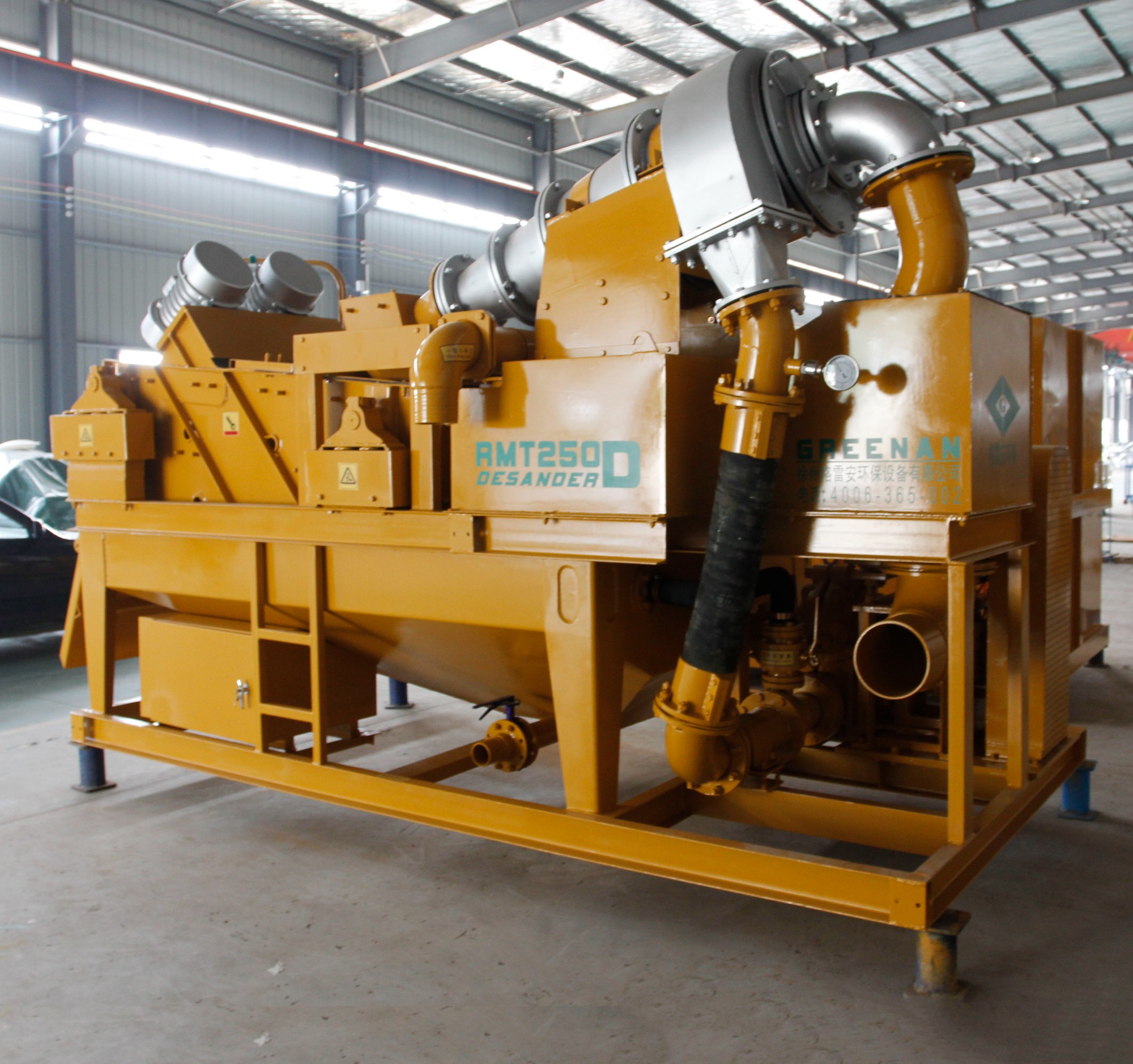

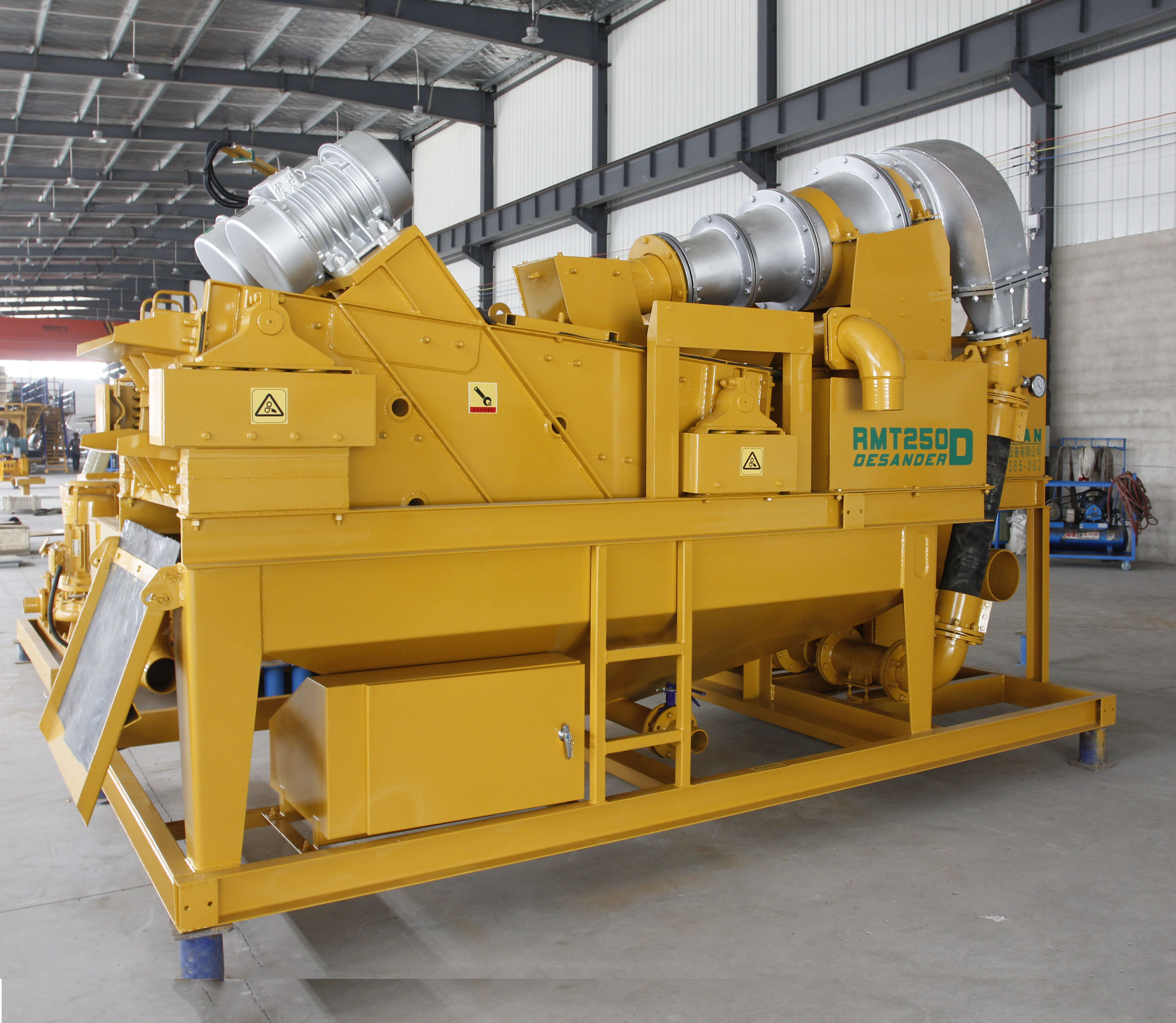

Product Details:
